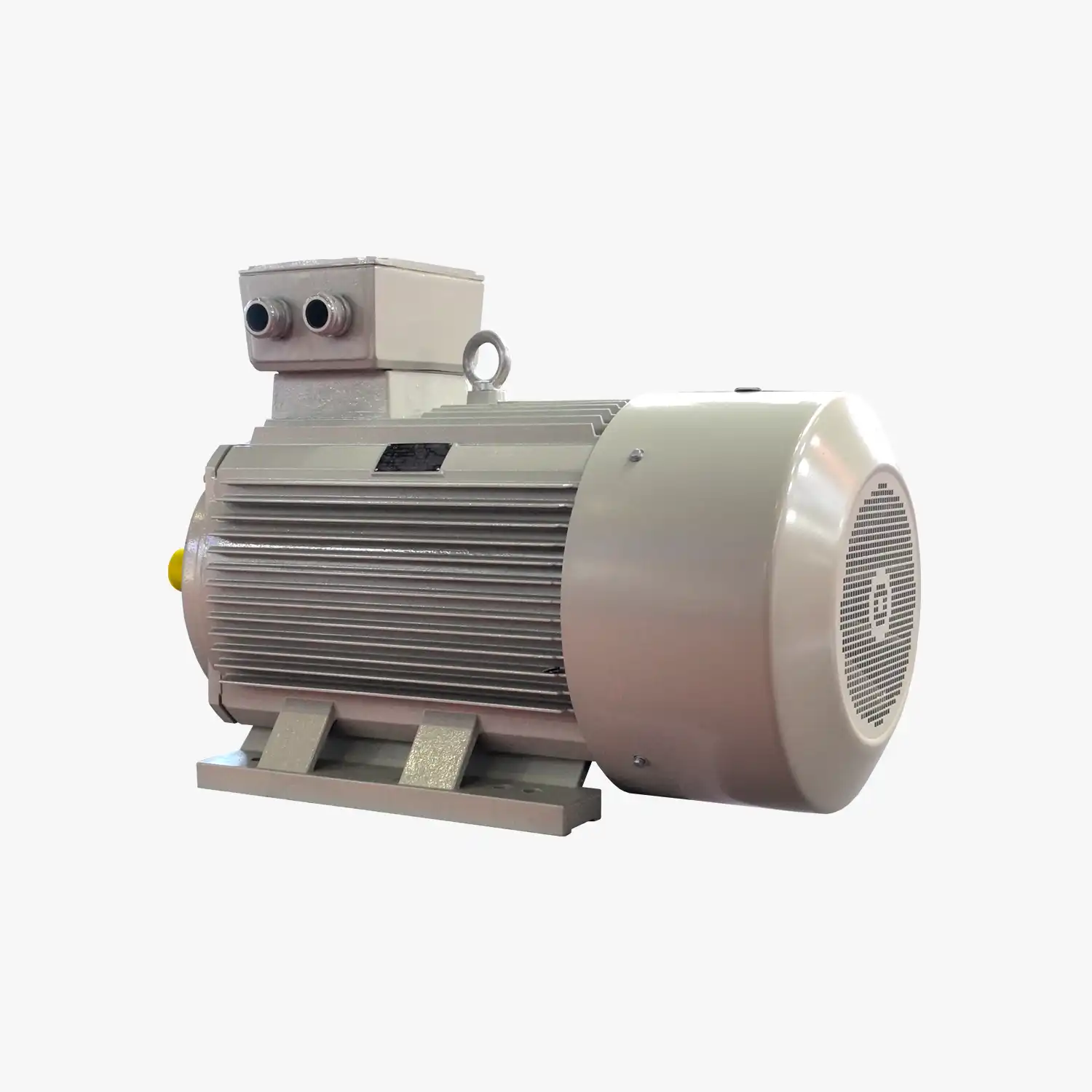

Ultra High Efficiency Three-phase Asynchronous AC Motor

Operating Conditions
Ambient temperature:- 15 ℃≤0≤40 ℃
Altitude: no more than 1000M
※for the correction of deviation of on- site operating conditions,
it shall be in accordance with the provisions of GB/ T 755- -2008
Humidity: the monthly average maximum relative humidity shall not exceed 90%
※the motor can be customized according to the requirements of the user’s
use environment

Category: Tags: , , ,

Description

PRODUCT OVERVIEW
YE4 series ultra- -high efficiency three- phase asynchronous motor is a highly efficient new upgraded product independently developed by bur company. Its efficiency meets the level 2 energy efficiency standard of GB 18613- -2020 and IEC60034- -30-1 IE4 efficiency index. The installation size conforms to IEC standard and national standard, customers can realize fast switching. YE4 series motor has the characteristics of beautiful appearance, low loss, low noise, low vibration, safe and reliable, easy maintenance, etc.
The products are mainly equipped with fans, water pumps, compressors, engineering machinery and other equipment, which are widely used in ventilation and refrigeration, building, oil and gas, petrochemical, coal gasification, metallurgy, electric power, nuclear power, shipbuilding, industrial automation and other fields.

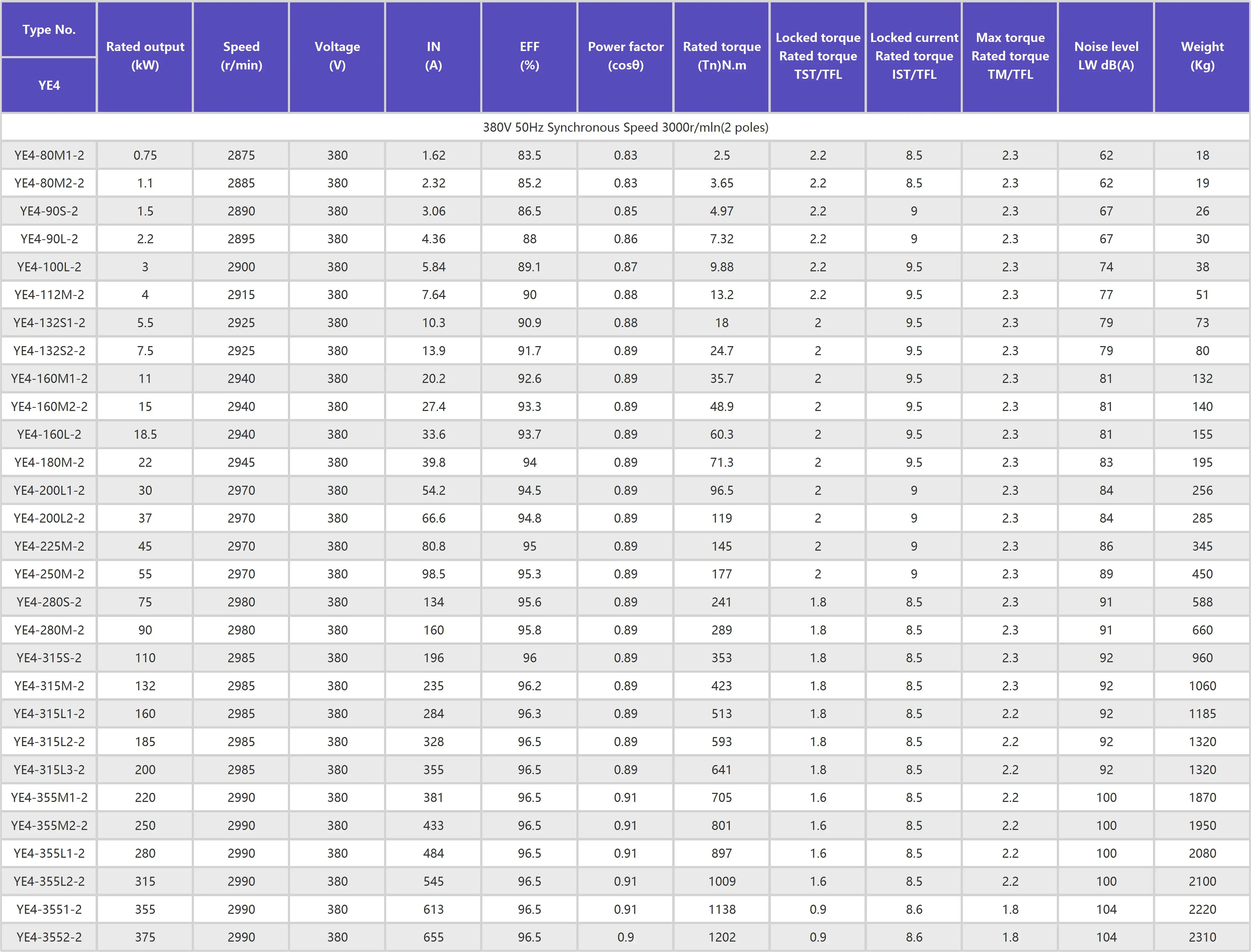

TECHNICAL DATE 2 Poles

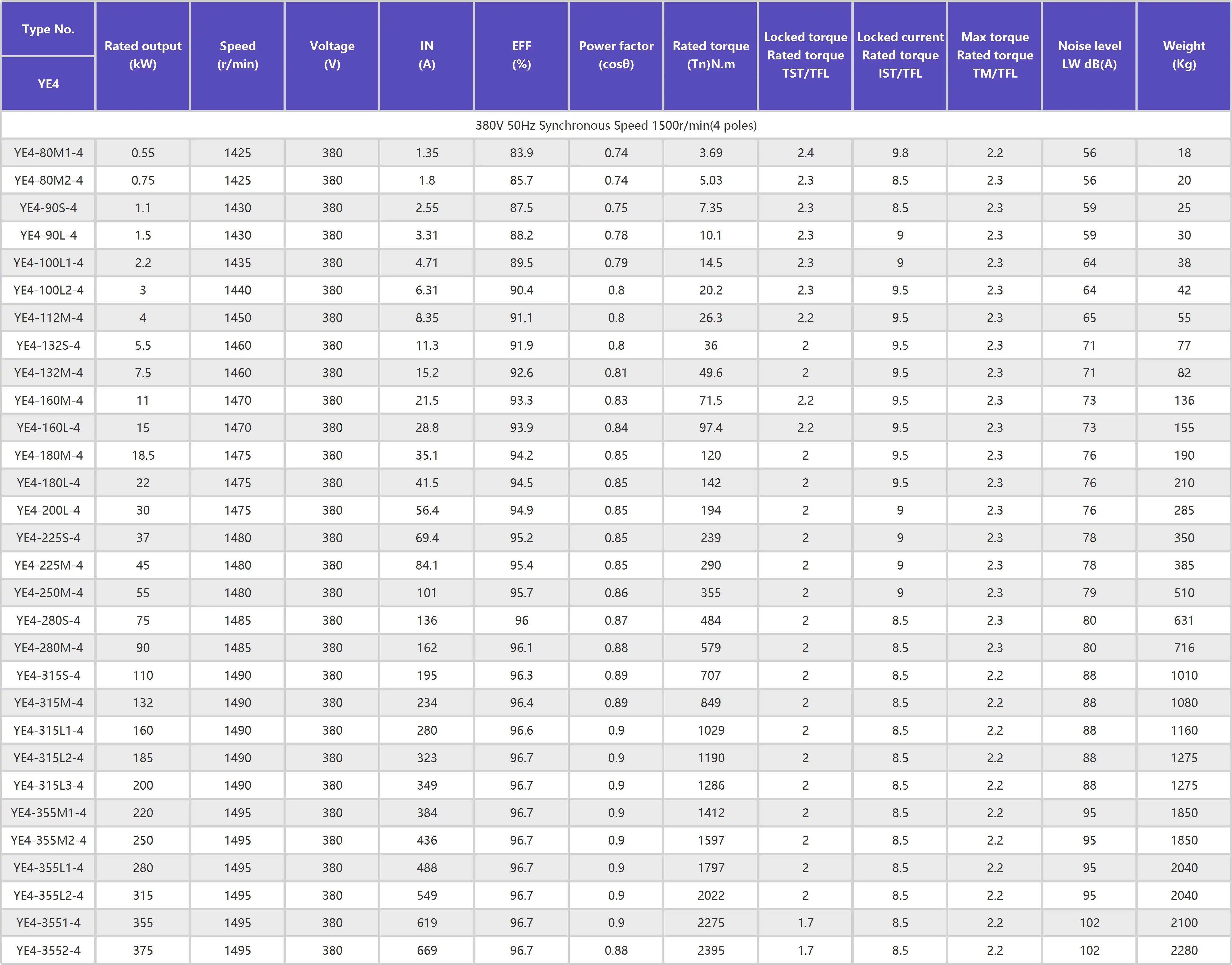

TECHNICAL DATE 4 Poles

TECHNICAL DATE 6 Poles

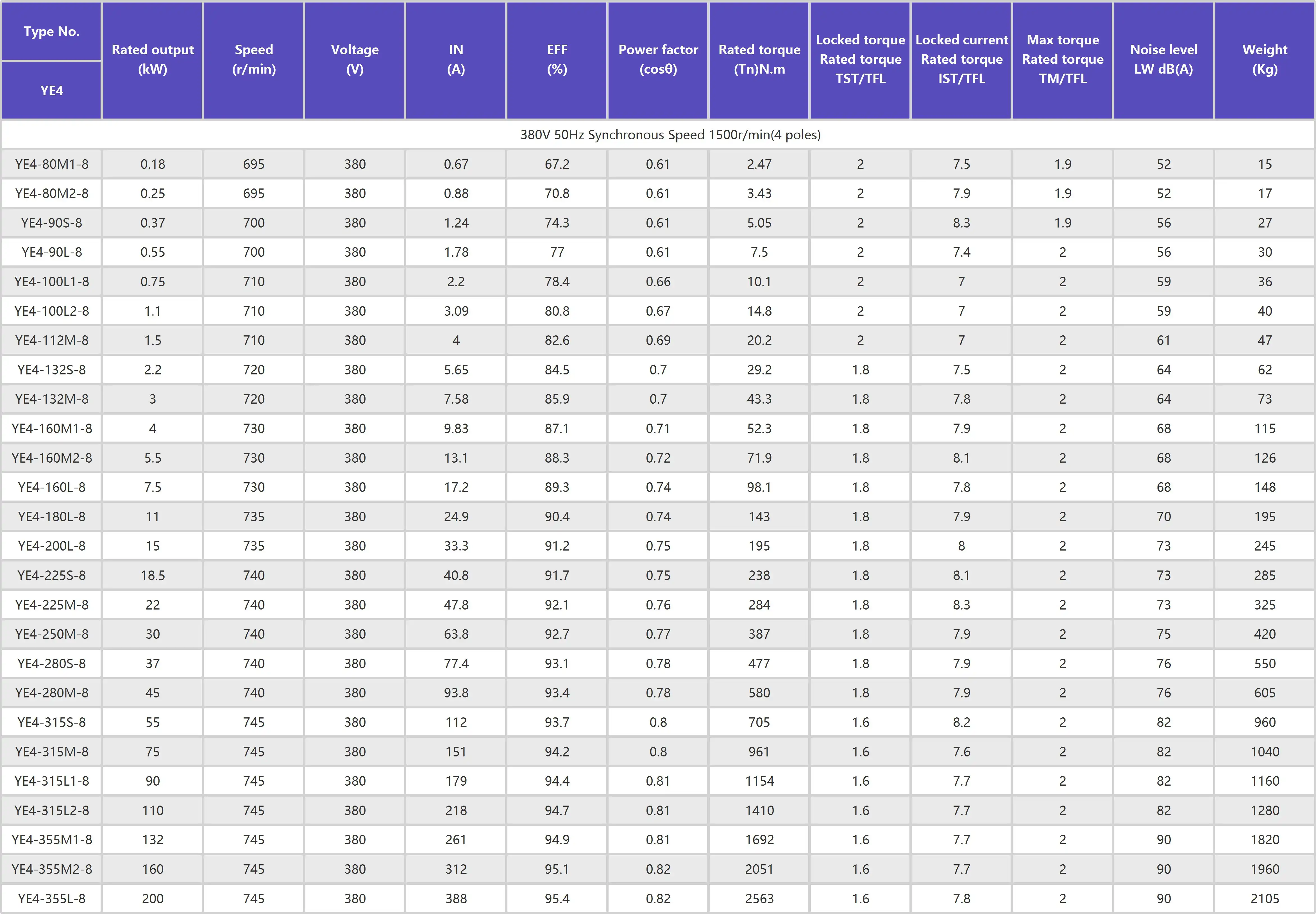

TECHNICAL DATE 8 Poles

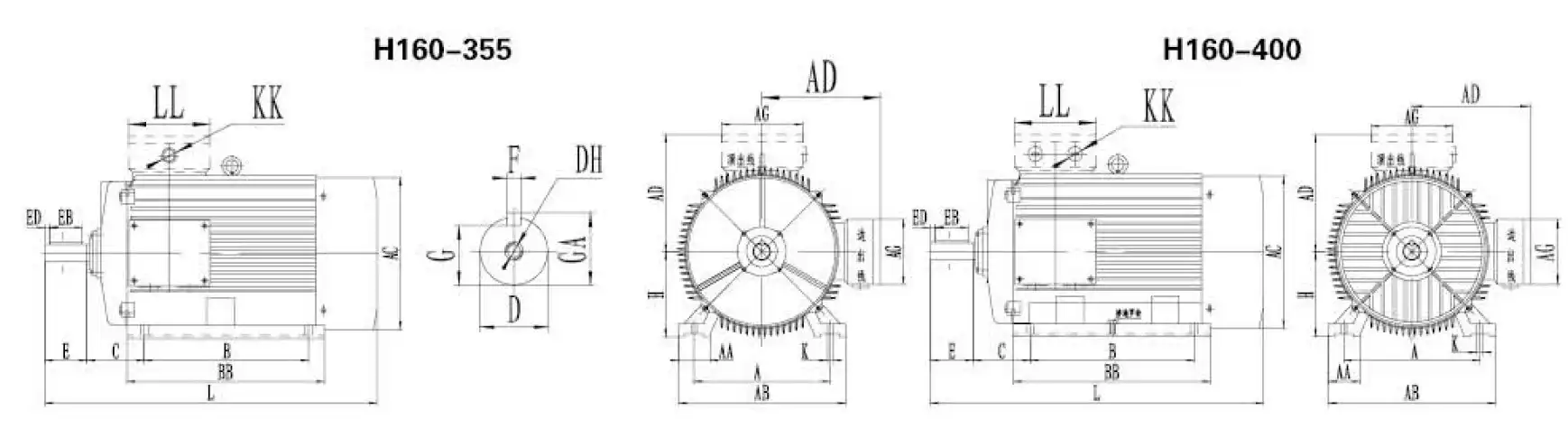

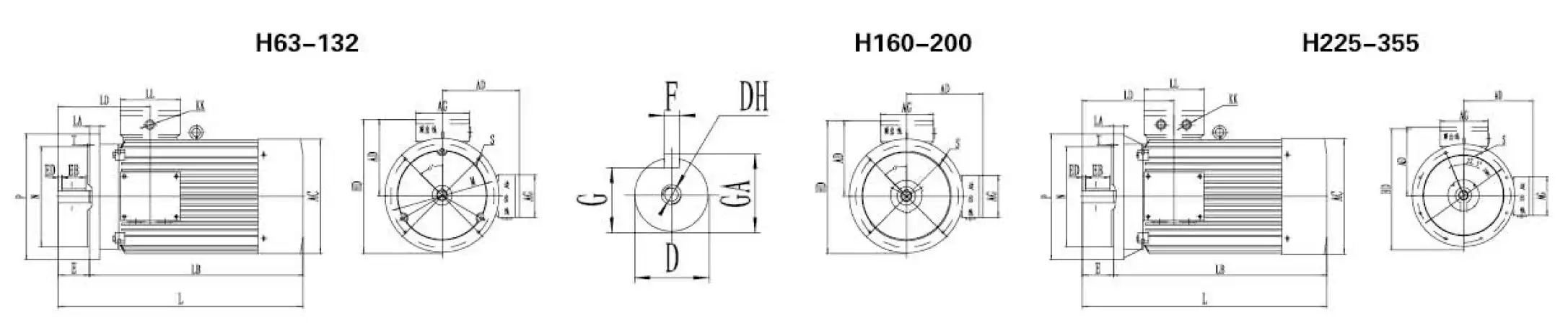

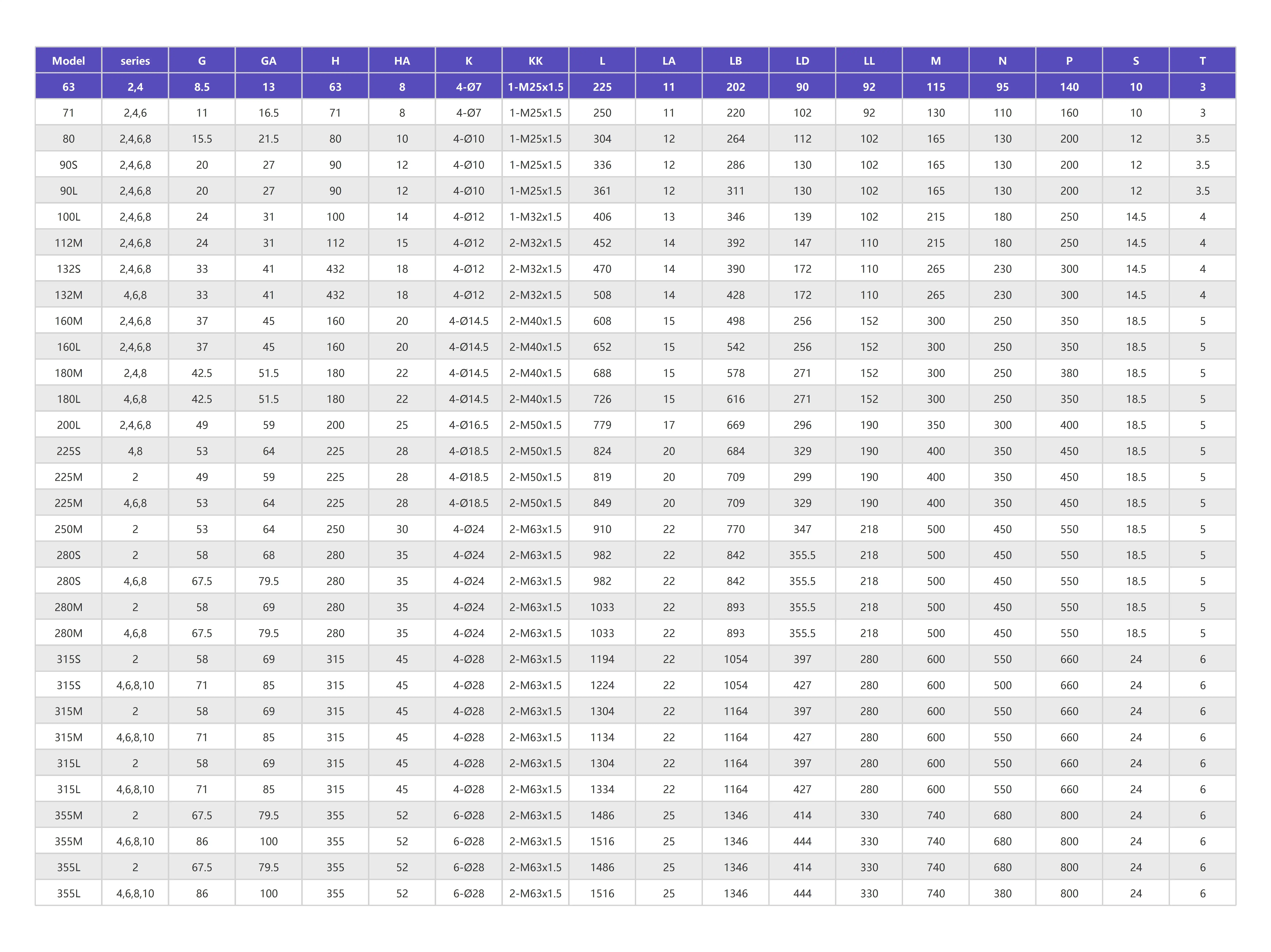

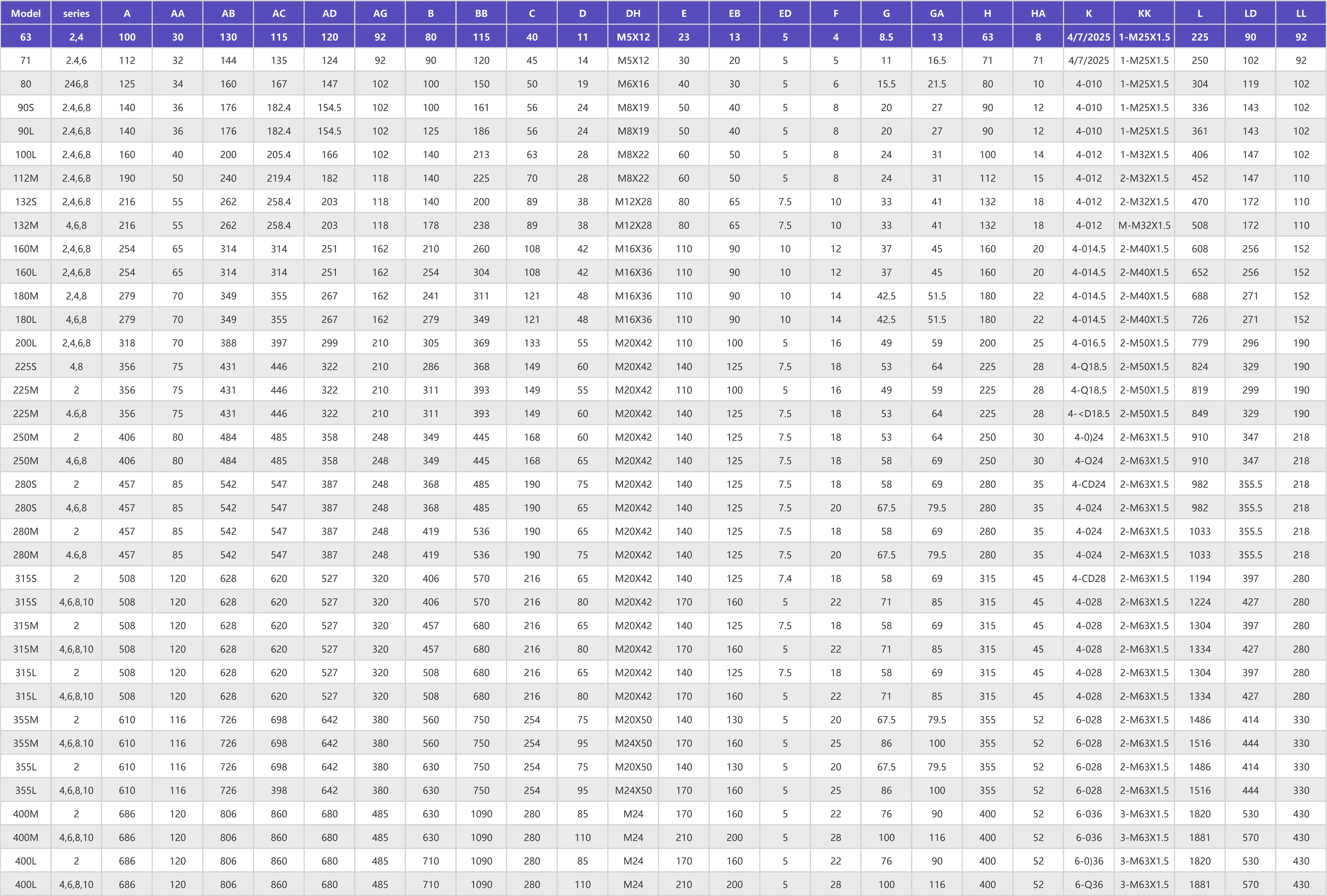

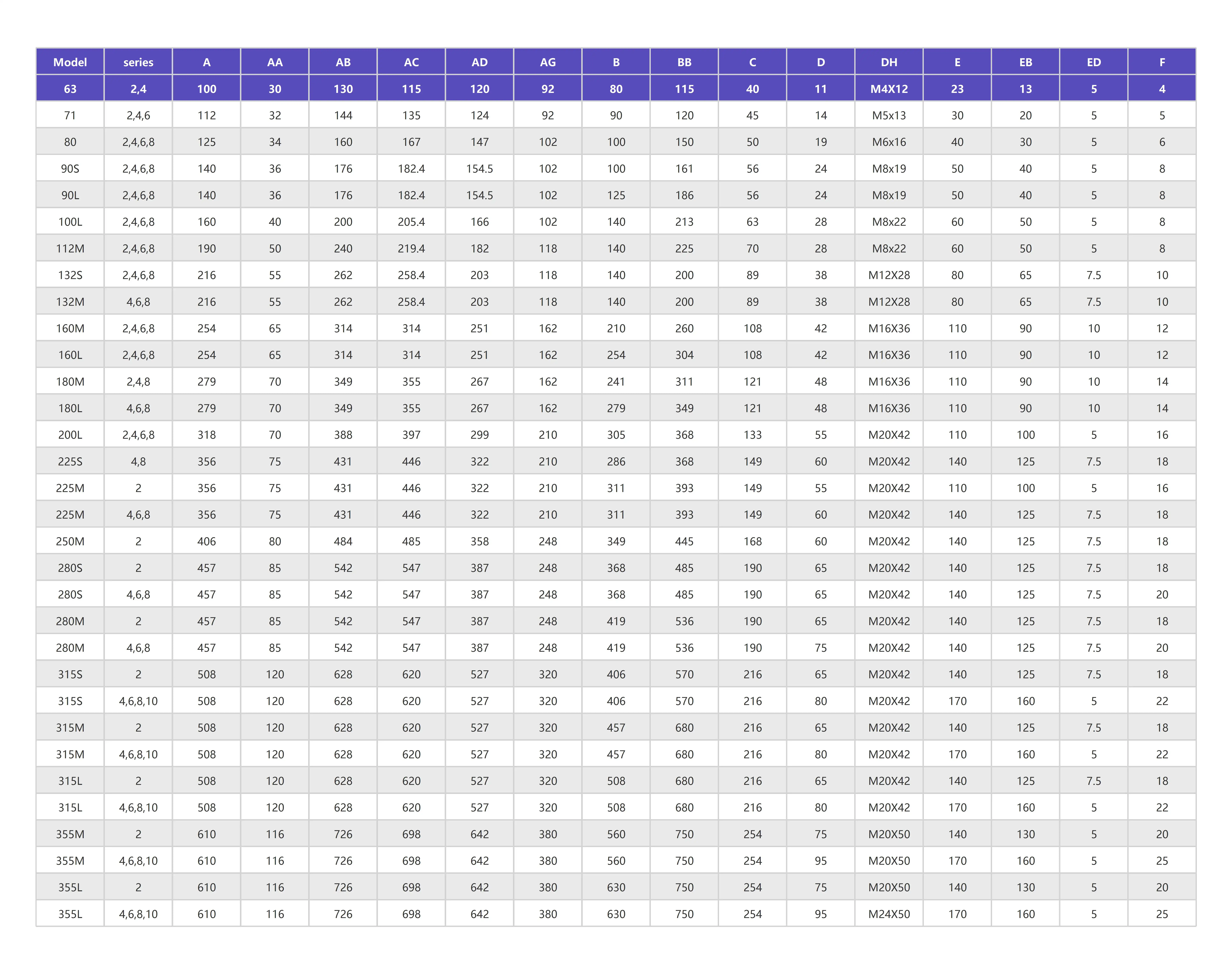

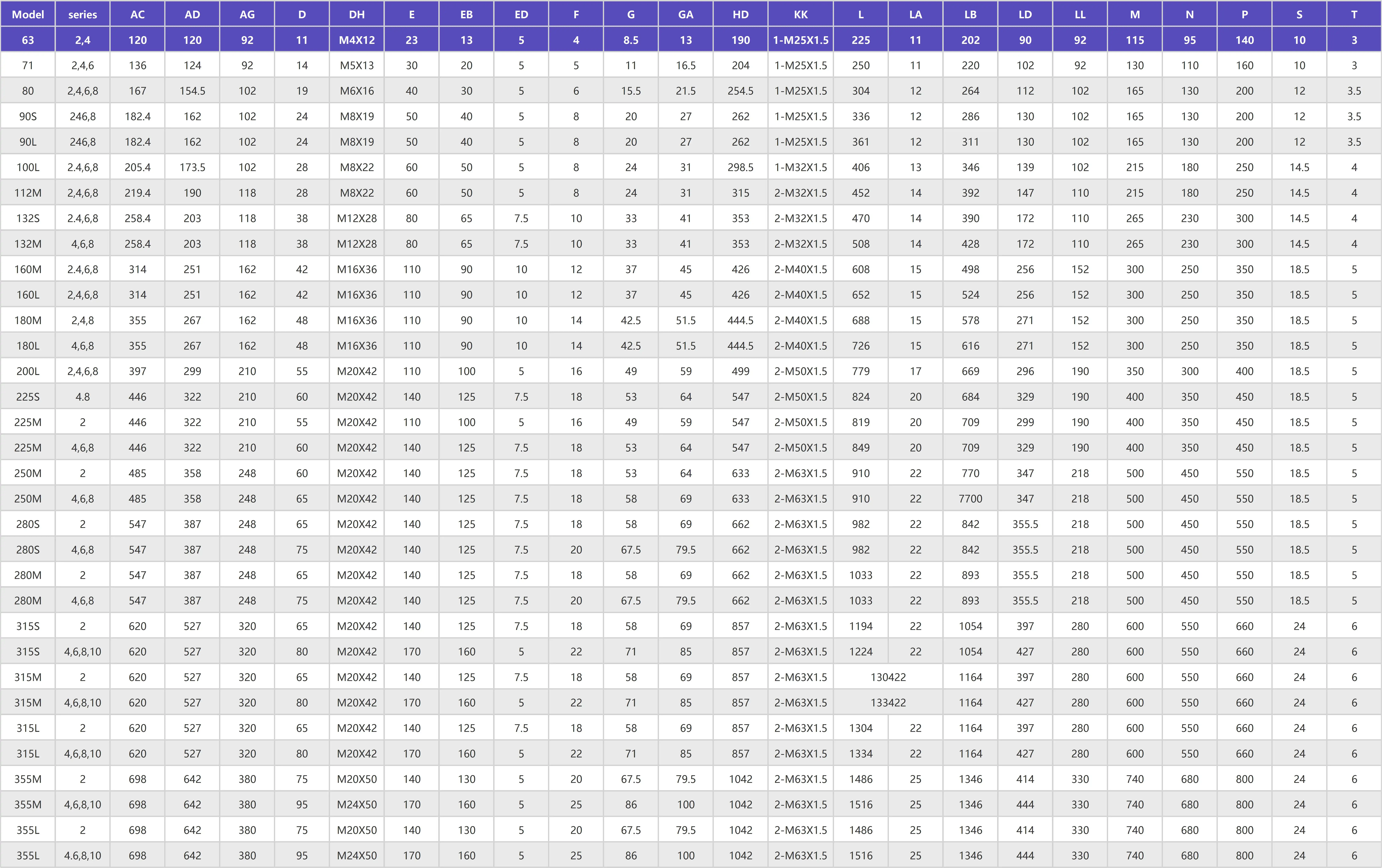

INSTALLATION WAY

IM B3 H63-400

IM B5 H63-355

IM B35 H63-355
