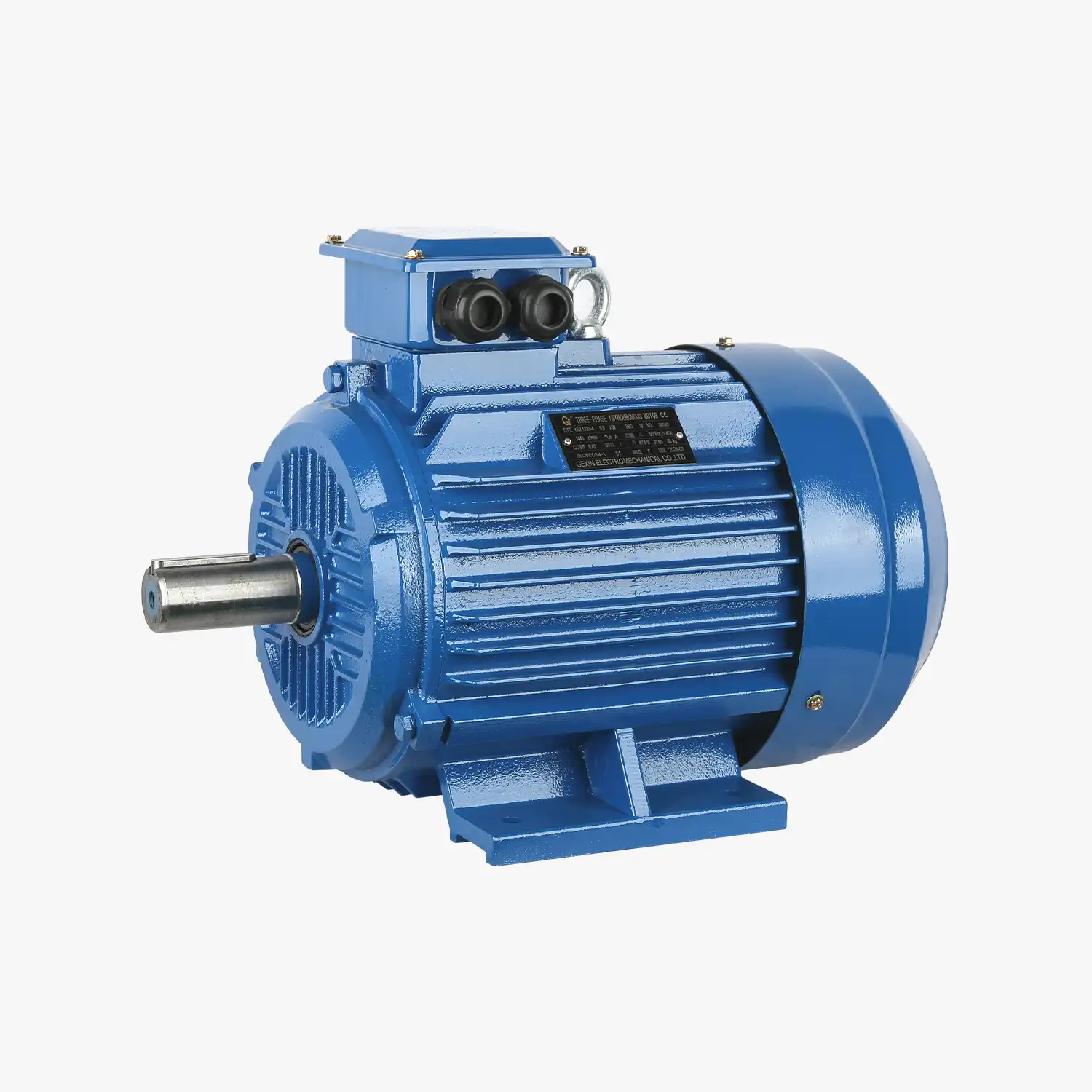

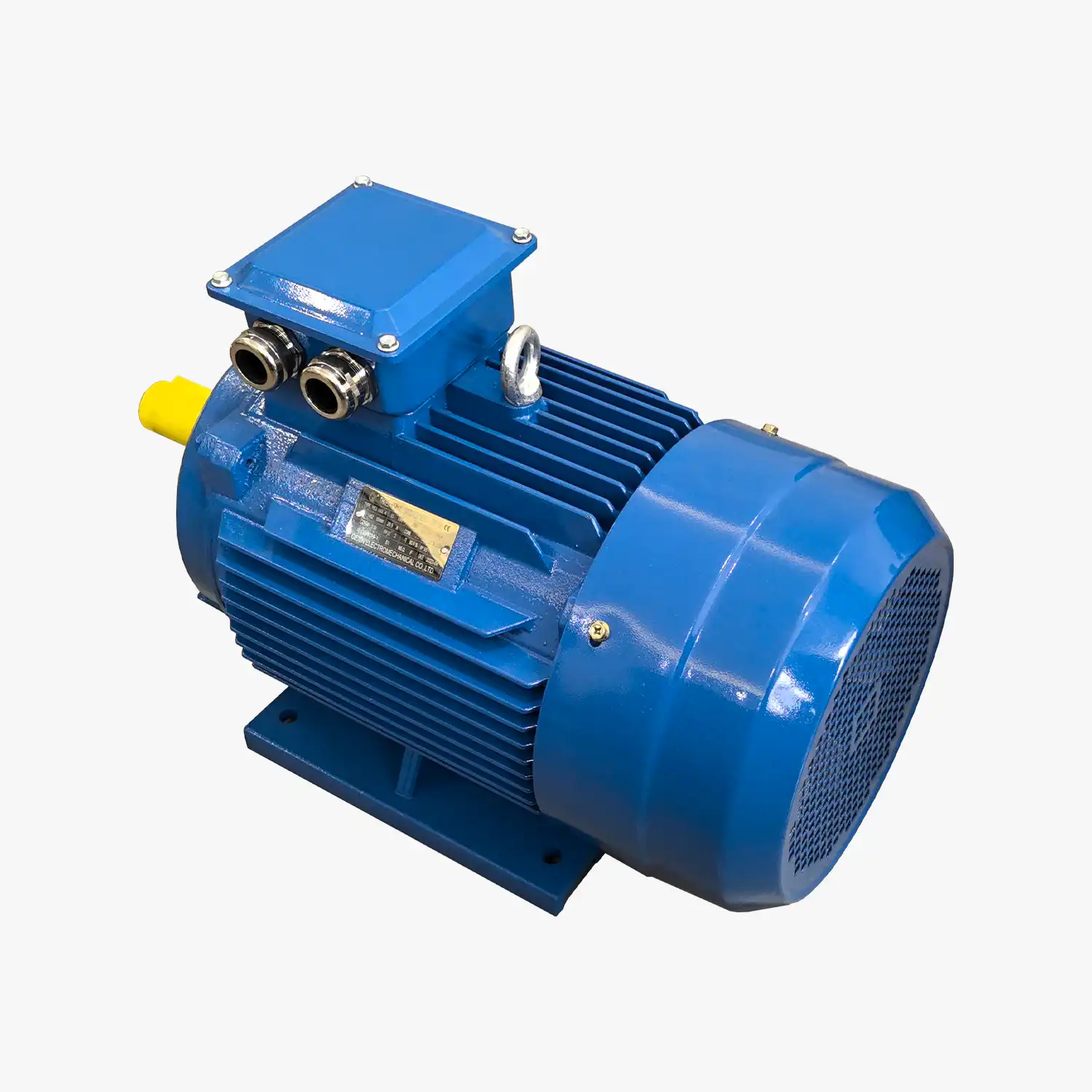

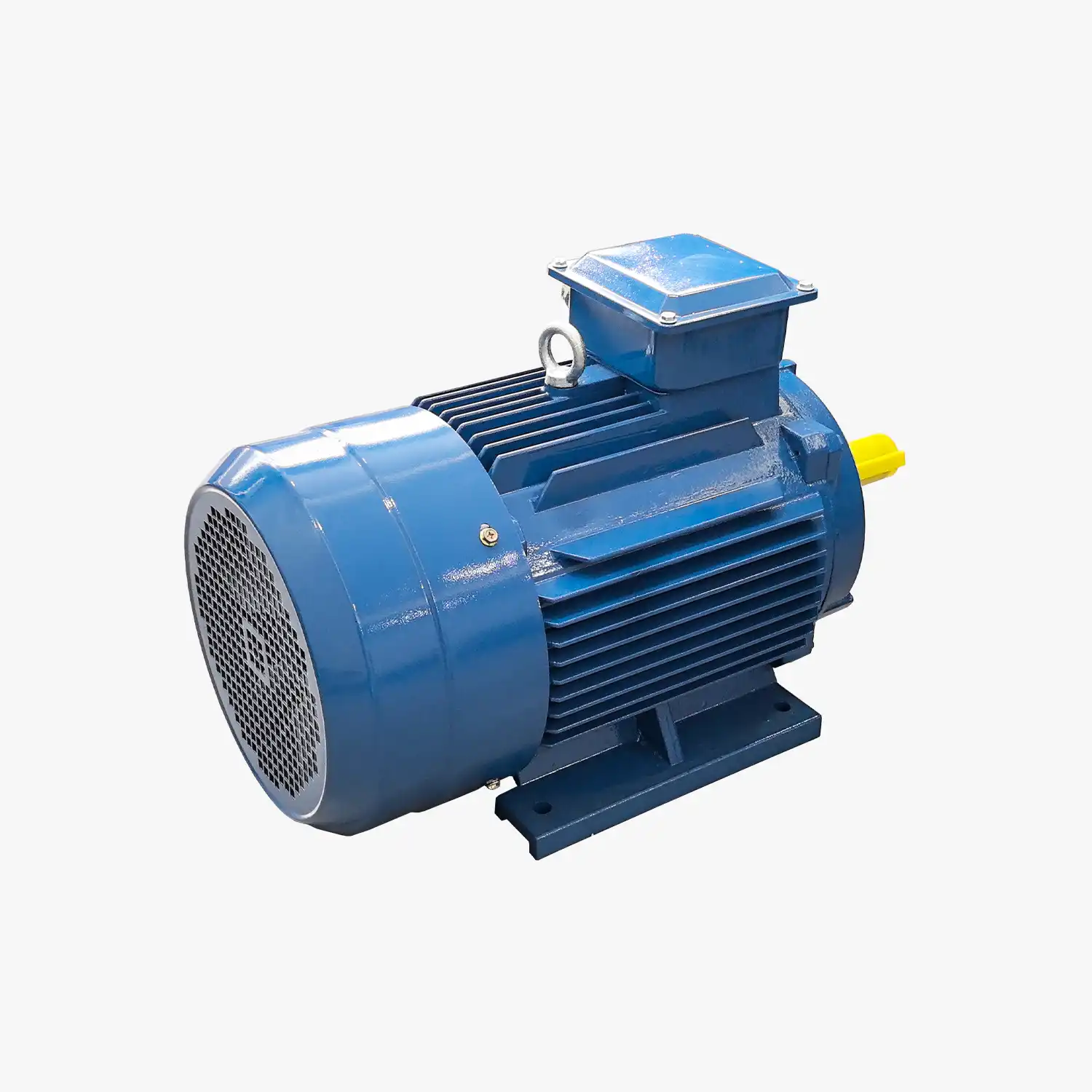

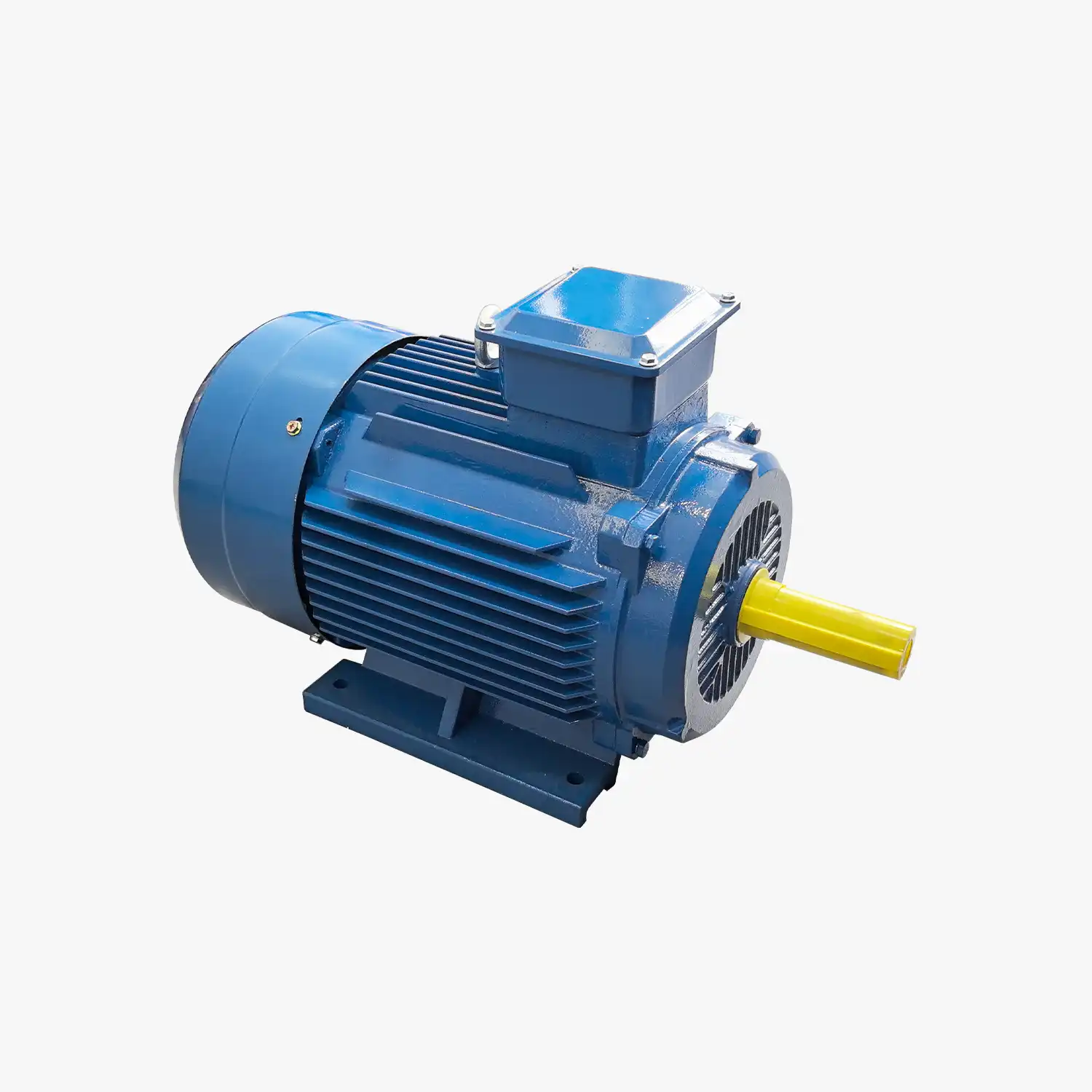

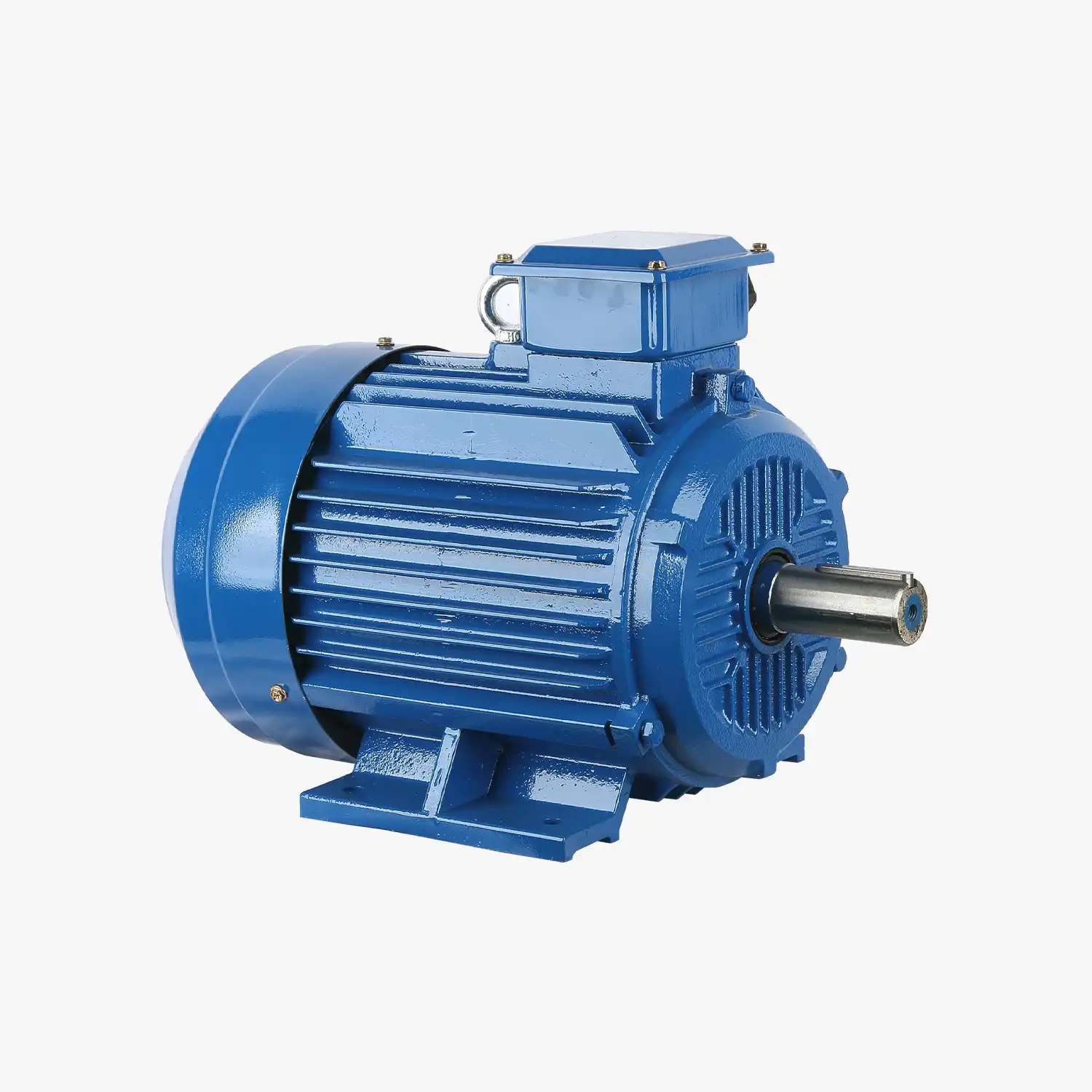

Three-phase Asynchronous AC Motor

OPERATING CONDITIONS
Ambient temperature: -15C≤0≤40℃
Altitude: not exceeding 1000m
Rated voltage: 380V or any voltage between 220-760V
Rated frequency: 50Hz、 60Hz
Protection class: IP55
Insulation class: F、H
Cooling method: ICO141
Duty: S1(continuous)
Connection: Star-connection for up to 3kw,
delta- connection for 4kw and above.

Category: Tags: , , ,

Description

PRODUCT OVERVIEW

Adopting the national uniform design, Y2/Y3 series three. -phase asynchronous motor, are conformity with ICE34-1 and GB/T25290- -2010 standards, also up to the international advanced level 90’s as substitute of Y series induction motors, It possesses sophisticated features such as new structure, good appearance, slight vibration, low noise etc.

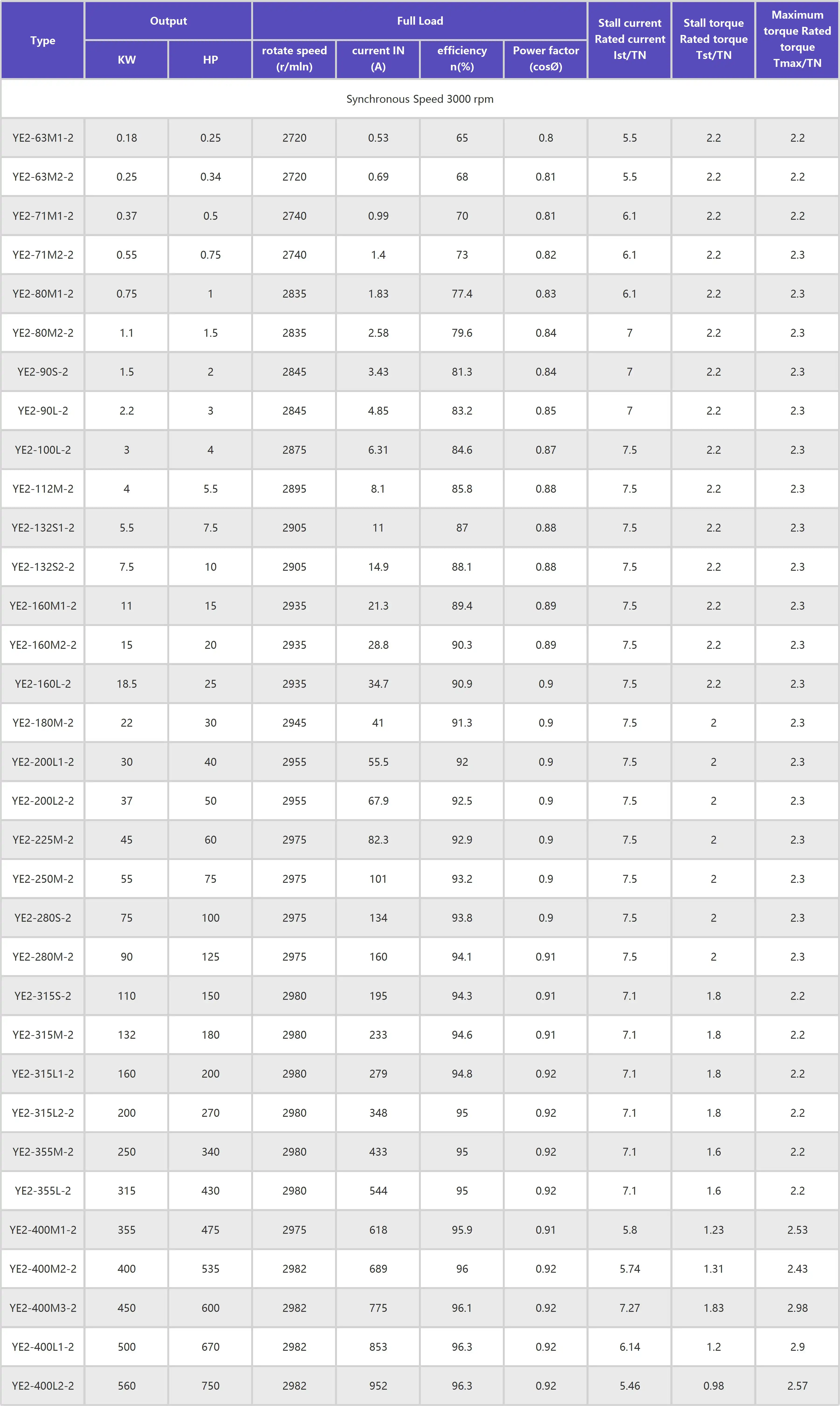

Technical Date 2 Poles

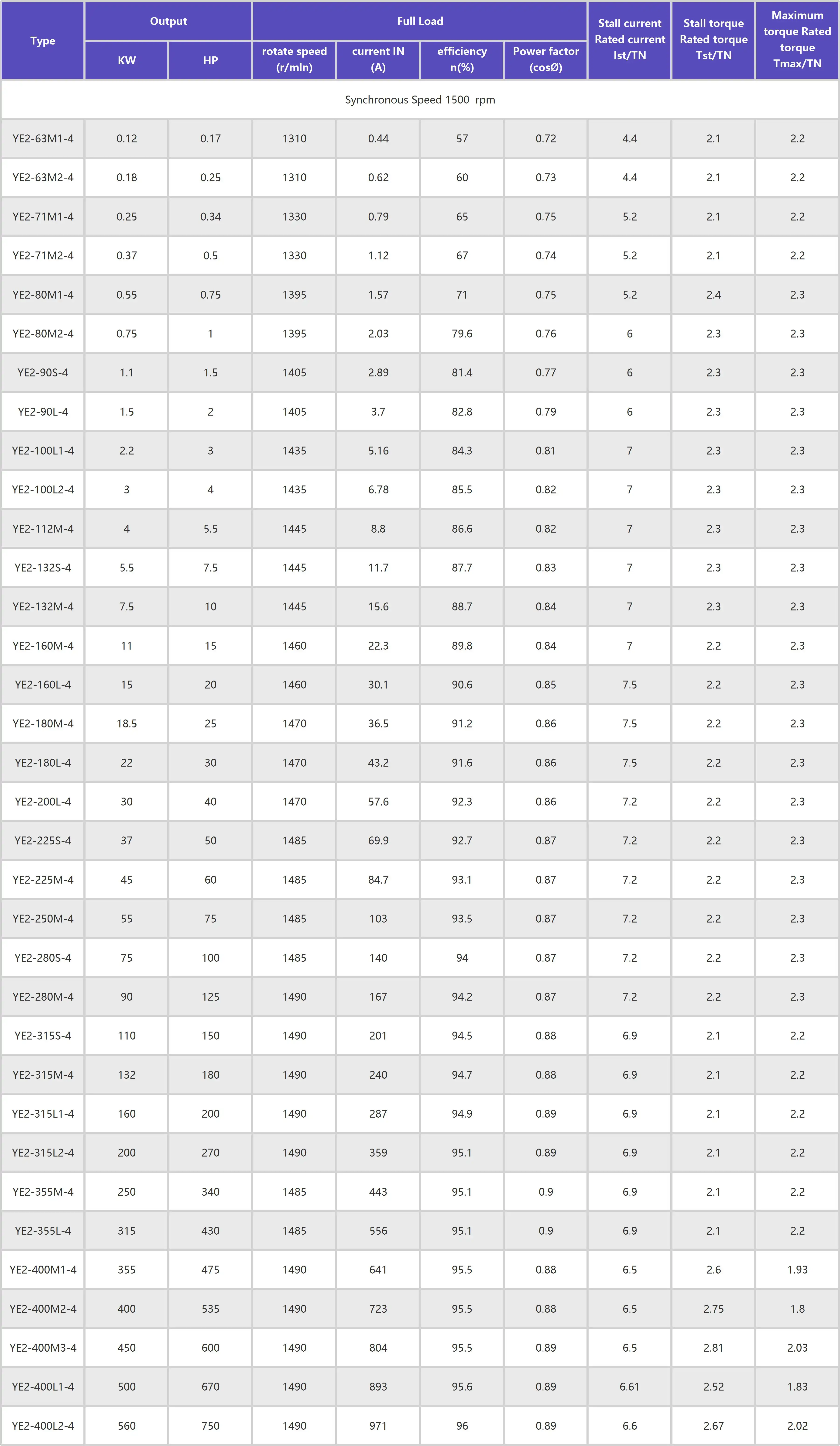

Technical Date 4 Poles

Technical Date 6 Poles

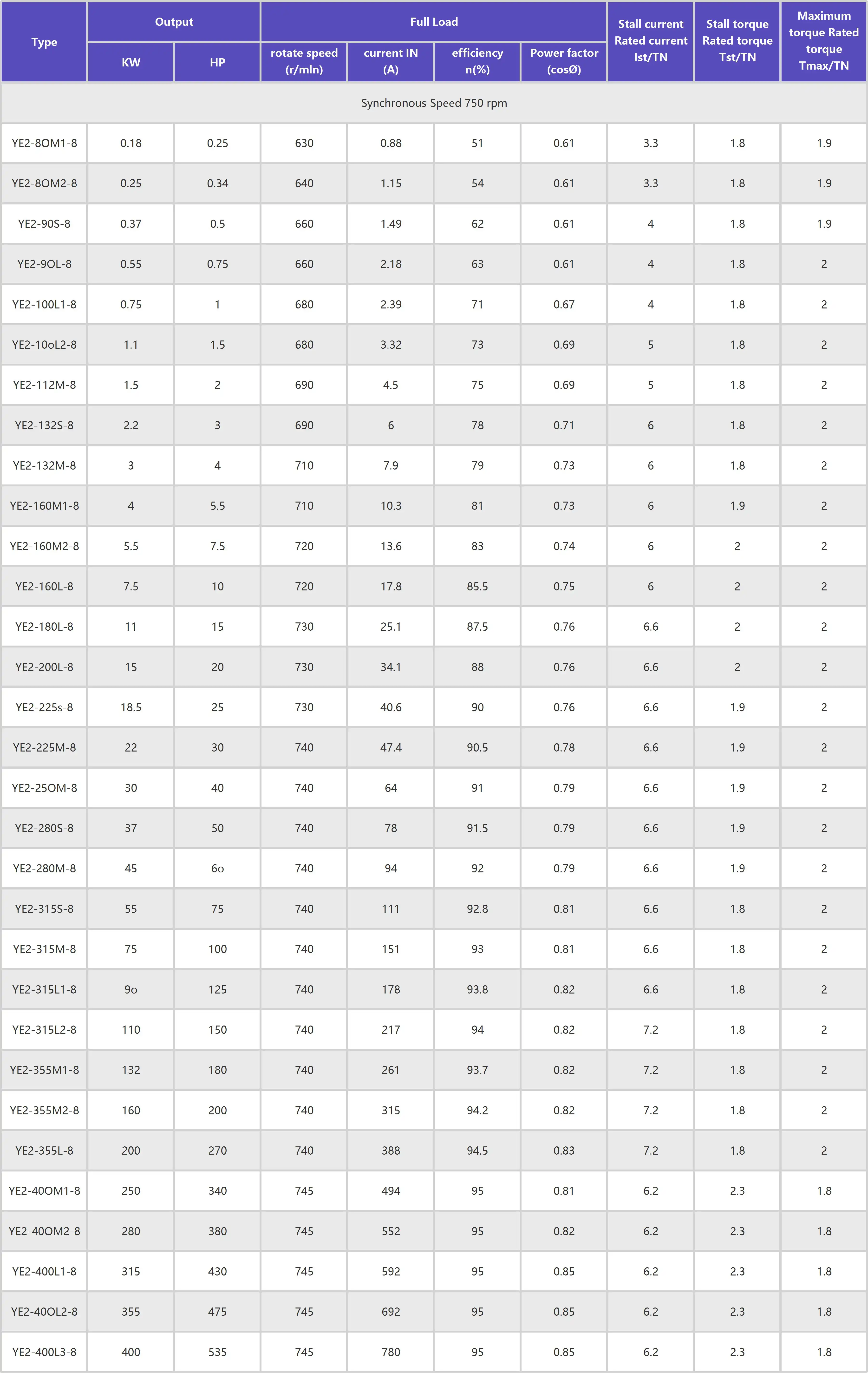

Technical Date 8 Poles

Technical Date 10 Poles

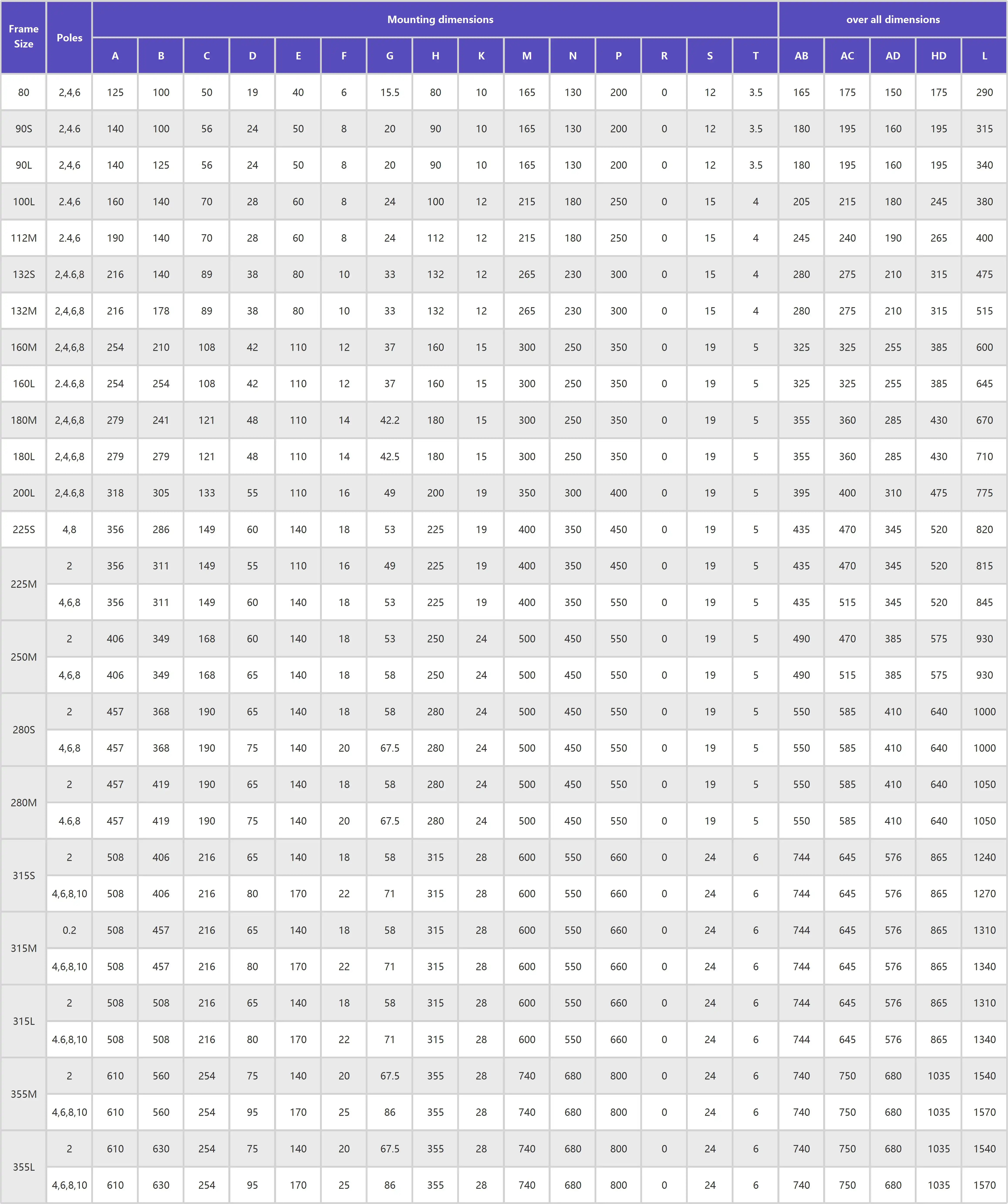

OVERALL & INSTALLTION DIEMSIONS
